Architecture

AWS Blu Age DevOps Setup is the base infrastructure for the AWS Blu Age Standard Delivery Environment (SDE). It supports the deployment of AWS Blu Age SDE features, including AWS Blu Age DevOps Pipeline and AWS Blu Age Regression Testing Snapshots. This setup provisions a secure infrastructure and enables the deployment of pre-configured development EC2 instances, providing Software Developer Engineers access to all necessary tools and resources for modernization projects.

The POC/Project is conducted on an AWS dedicated account owned by the customer with access permissions for the AWS Blu Age Delivery team managed by the customer.

This document provides an overview of the architecture that is deployed on a dedicated POC/Project customer AWS account. The Account is managed by the customer.
This configuration is deployed using CDK Scripts.

Architecture and Tools

AWS Components involved

• Amazon VPC Resources

  VPC
  Public Subnet
  Private Subnet
  Isolated Subnet
  Internet Gateway
  NAT Gateway
  Network Firewall
  Route Tables
  Network ACLs
  Security Groups

• VPC Endpoints

  SSM
  EC2_MESSAGES
  EC2
  SSM_MESSAGES
  KMS
  CLOUDWATCH
  CLOUDWATCH_LOGS
  CLOUDWATCH_EVENTS
  CODEDEPLOY
  CODEDEPLOY_COMMANDS_SECURE
  CODEBUILD
  CODEPIPELINE
  ECR
  ECR_DOCKER
  ECS
  ECS_AGENT
  ECS_TELEMETRY
  CODEARTIFACT_API
  CODEARTIFACT_REPOSITORIES
  SQS
  AUTOSCALING
  LAMBDA
  SECRETS_MANAGER

• AWS Private Certificate Authority (ACM)

  Private Certificate Authority
  Certificate

• Logging

  VPC Flow Logs
  Firewall Logging
  S3 Access Logging

• CloudWatch

  Cloudwatch Log Groups
  Amazon EventBridge Rule
  Cloudwatch Alarms

• EC2

  Launch Template

• IAM

  IAM Roles (optional)
  IAM Policies
  IAM EC2 Instance Profile

• Lambda Function
• Cloud Formation Stacks

Network Architecture

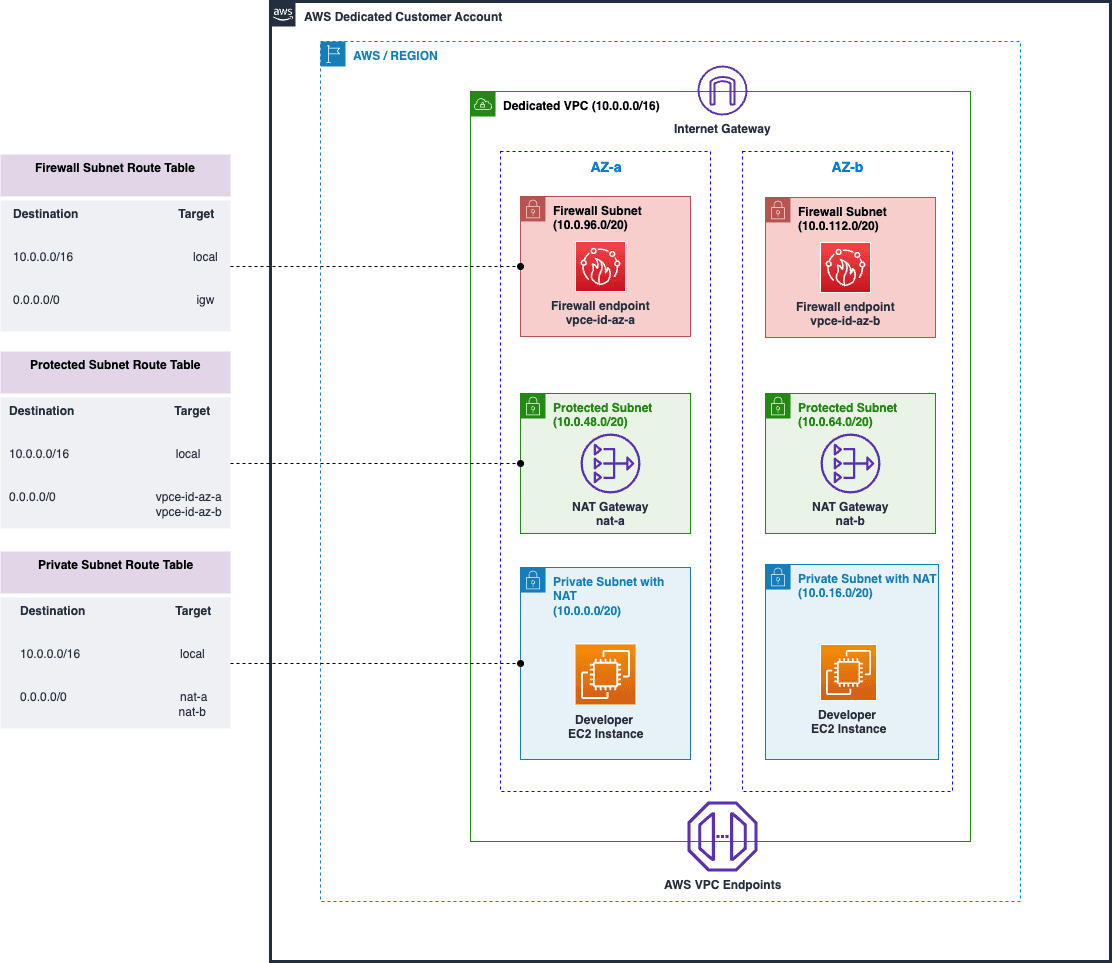

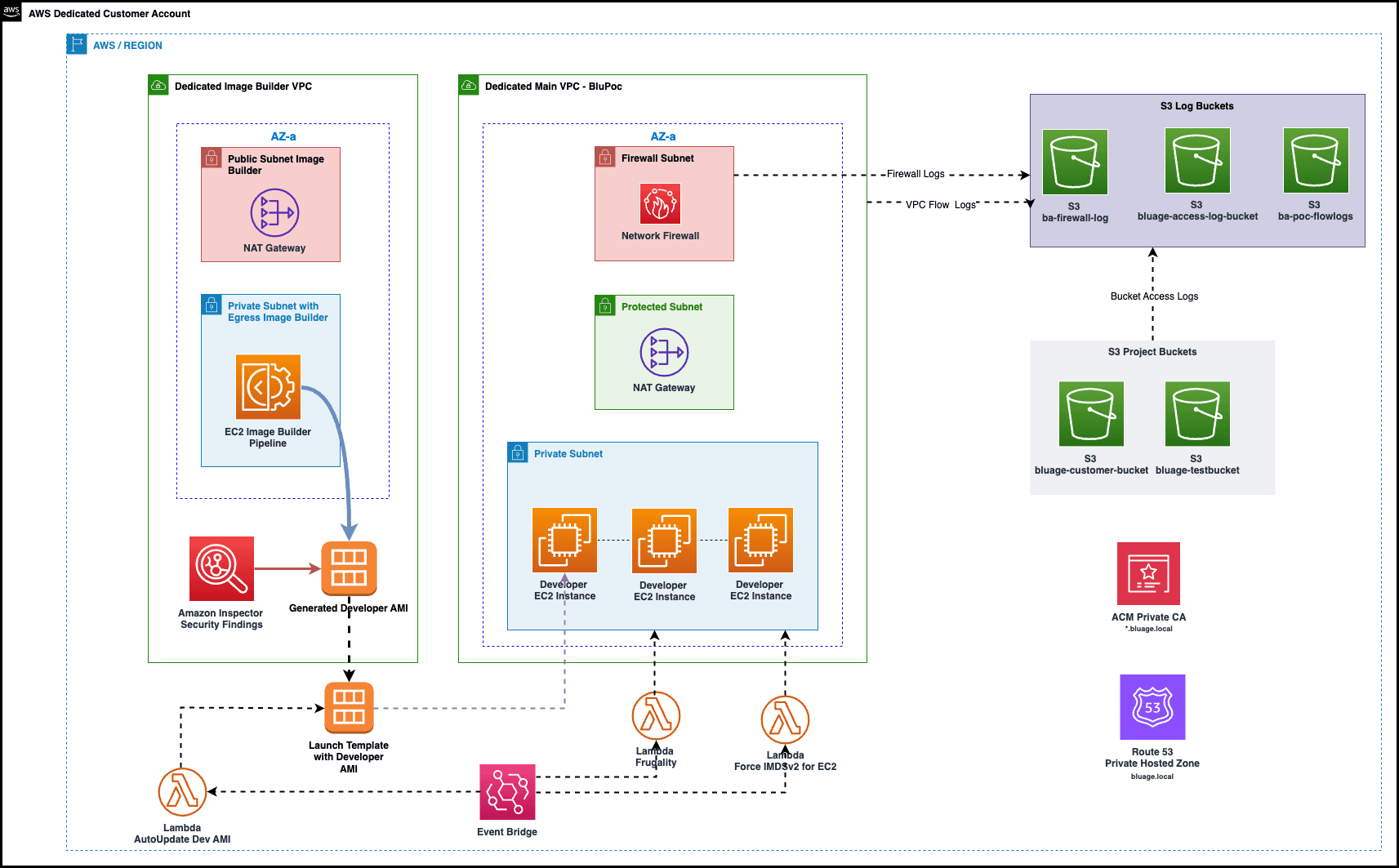

The infrastructure is composed by a VPC over 2 availability zones. Each availability zone will host a protected subnet, firewall subnet and a private subnet

Protected subnet

This subnet is protected by AWS Network Firewall on all public components.
This subnet is needed to host the NAT Gateway to enable the component located in the private network to access the internet to:

• Access to AWS Blu Insights to run analysis and transform the code
• Access to the BLU AGE support ticketing system (JIRA) for AWS Delivery Teams Only
• Access the Maven dependencies and other artifacts needed for the project (Spring, Apache, etc.).
• Access Windows Update repositories to update Development Windows EC2

Others access will not be authorized. The access will be granted using AWS Network Firewall ( Firewall Rule Groups ), Network ACL and security groups at the VPC level.

Firewall subnet

This subnet is needed to host AWS Managed Network Firewall to only enable needed network egress rules.
By default everything will be denied.
No Ingress trafic allowed;
Egress will be the 4 services detailed above

Private subnet

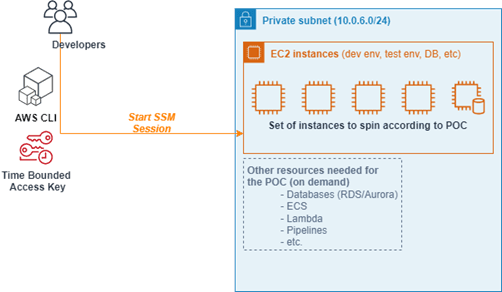

Private subnet is totally isolated from the outside. All the ports are closed by default (even 22 or 3389) using security groups. The only way to connect to an EC2 instance located in the private subnet is

• by using AWS Session Manager (SSM) from a computer having AWS CLI configured with an access key allocated to a specific granted to this account. User will be able to connect through SSM on port 3389 (Windows RDP)
• Developers must use a personalized SSM document which only authorizes Port-Forwarding connections in RDP on port 3389 and only on EC2 instances with a specific Tag : Role/Bluage
• by first connecting to an instance located on the private network using the procedure above (SSM), and then “jump” to another instance on the private network using RDP or SSH if allowed.

S3 Buckets

S3 buckets Description

S3 buckets Configuration:

All data in s3 buckets are encrypted with Server-side encryption with Amazon S3 managed keys (SSE-S3). Data transfer in and out are through secure transfer (defined in bucket policy). S3 bucket accesses are stored in access log bucket, and object versioning is enabled.

Firewall Rule Groups

BluSupportServicesRuleGroup

Domains provided in this firewall rule group grants developers access to variety resources, which are required by application development needs. The full list of domains and reasons they are listed are explained below:

BluWindowsUpdateRuleGroup

Domains listed in this firewall rule group is for Windows EC2 instance patching. Patching requires Windows OS accessing Microsoft domains to download update patches.

EC2 instances

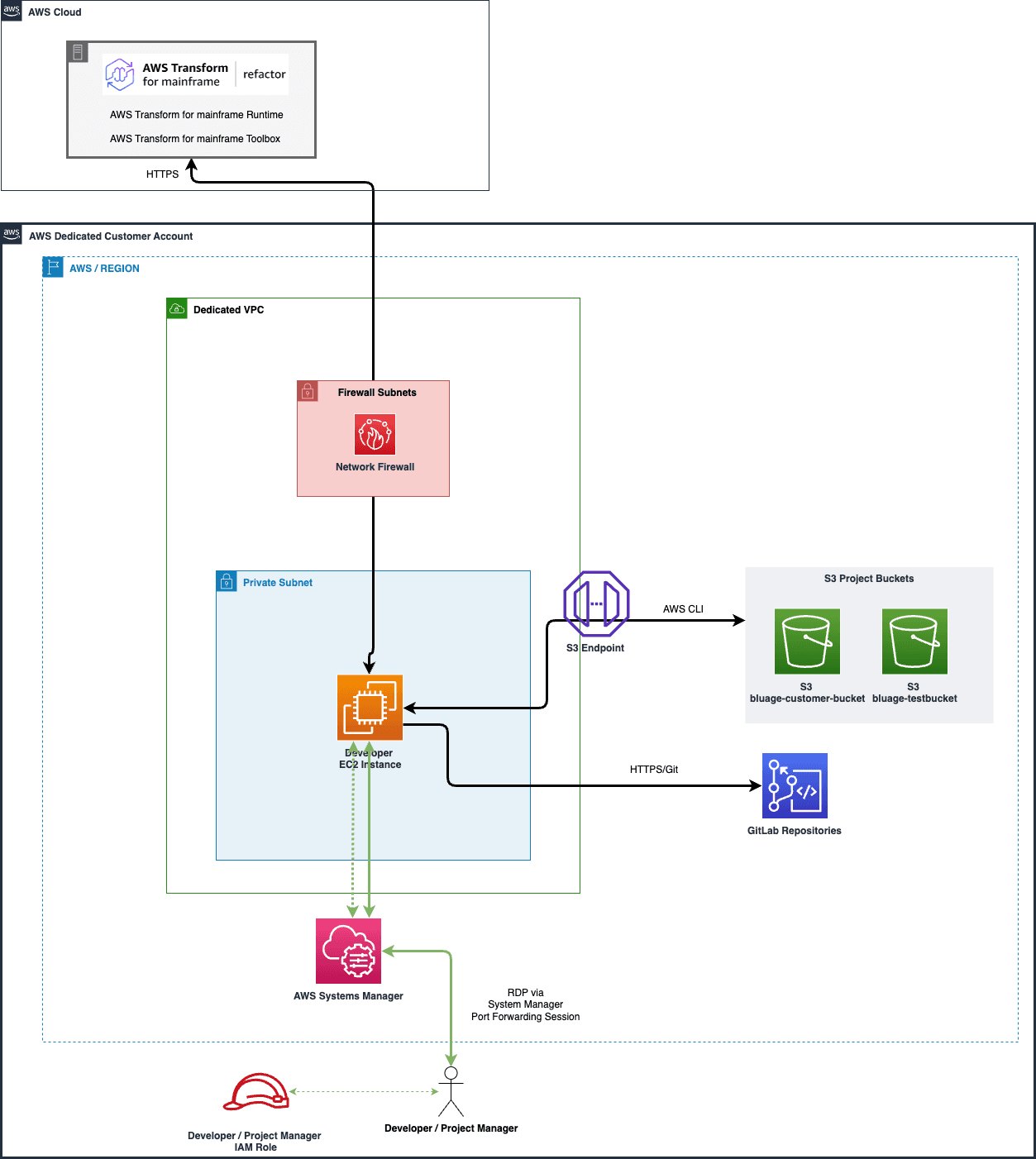

Developer EC2 Instances

• AWS Blu Age Dev environment: Windows instance with the Blu Age tooling. Each Developer who is assigned to the project will be created one dedicated EC2 as their workstation.
• Developer will download customer uploaded test cases and data from customer S3 bucket
• Developer will access Blu Insights
• Developer access transformed code from AWS Blu Insights using CodeCommit Booster
• Developer will connect to the developer machine using windows remote desktop via SSM Session Manager.
• Developers must use a personalized SSM document which only authorizes Port-Forwarding connections in RDP on port 3389 and only on EC2 instances with a specific Tag : Role/Bluage

# Example:
aws ssm start-session --target instance-id \
--document-name AWSBluageEC2PortForwarding \
--parameters portNumber="3389",localPortNumber="56789"

• The following third-party tools are pre-installed in for the developer machine AMI: 7-zip, HxD, Notepad++, VSCode, NodeJS, Tomcat, Maven, DBeaver, Eclipse, Git, Chrome, Greenshot, IBM MQ, Firefox, Spring Tool Suite, SQL Developer, Web Storm, Open office, Azure Data Studio, WinSCP, WinMerge.

• AWS Blu Age Runtime and dependencies will be downloaded from AWS Blu Age S3 bucket. These AWS Blu Age dependencies can be updated frequently, for example every day.

  Access to Dev EC2 Instances

EC2 security and controls

3 Lambda functions are deployed :

• frugality-lambda

  Start/Stop AWS resources in a certain category (based on labels) at a given time.
  For now, the Lambda is able to manage 2 kind of resources:
  EC2 Instances : No need to automatic restart of these EC2 instances, which is the responsibility of the developer at the start of the day.
  ASG clusters : Configuration of these resources must complied with the CI/CD scheduling. It’s up to the devops team to manage Start/Stop of this resources

  1 - The Lambda is triggered by an EventBridge Rule Scheduler

  2 - The Lambda processing will iterate on all resources having the specific Tag and check for current day if the resource have to be started or stopped. This configuration action is define by the value of the parameterStore specified by the Tag

• blu_autoupdateAMI-BluAge-Developer-Instance

The Lambda function is designed to update the AWS EC2 Launch Template with the latest AMI ID that matches “BluAge PLZ Dev Env Recipe*” pattern. It also updates an AWS Systems Manager Parameter Store parameter to store the latest AMI ID.

1. Retrieves environment variables for the AMI name pattern, Parameter Store parameter name, and Launch Template name.
2. Initializes AWS SDK clients for EC2 and Systems Manager (SSM).
3. Checks if the specified Launch Template exists, and returns an error if it doesn't.
4. Finds the latest AMI ID that matches the specified name pattern.
5. Retrieves the current AMI ID from the Parameter Store parameter. If the parameter doesn't exist, it creates it with the latest AMI ID.
6. Compares the latest AMI ID with the current AMI ID in the Parameter Store.
7. If the AMI IDs are different, it performs the following steps:
8. Creates a new version of the Launch Template with the latest AMI ID.
9. Sets the new version as the default for the Launch Template.
10. Updates the Parameter Store parameter with the latest AMI ID.
11. Removes old Launch Template versions, keeping only the latest specified number of versions (e.g., the latest 5 versions).
12. If the AMI IDs are the same, it prints a message indicating that no update is needed.
13. The function returns a success message with the appropriate details.
14. If any exception occurs during the execution, it catches the exception, prints the error message, and returns an error message.

SSM Parameter Store
Store the latest AMI ID available.

EventBridge rule
An EventBridge rule execute the Lambda function with a cron schedule.

• Blu_Check_and_Modify_IMDS

  This Lambda function is designed to ensure all EC2 instance started on the environment use IMDSv2.
  An EventBridge rule detect each startup of an EC2 instance. The lambda function is then executed. It checks the IMDS version used by the EC2 instance. If the EC2 instance used IMDSv1, the lambda function modifies the version to use IMDSv2

• EC2 Instance patching through SSM

  Windows and Linux EC2 instances are patched through AWS Systems Manager Patch Manager. By default, SSM Patch Manager runs everyday at midnight. The schedule can be modified by the customer.

Logging :

• Network Firewall Logging on dedicated S3 Bucket
• S3 Access Log Enabled to log on a dedicated S3 Bucket

• VPC Flow Log Enabled to log on a dedicated S3 Bucket

  System actors and IAM Roles

  Use cases

IAM Roles

The creation of the IAM roles below is optional. When deploying the CDK, the customer can choose to create these roles or subsequently make available roles that they have created en defined themselves.

AWS Blu Age Project Manager Role

AWS Project Manager (role name: BluAge_Project_Manager_IAM_Role) in charge of the project that developed on POC Landing Zone customer account. This role has access to most of the resources, such as EC2, S3, RDS, etc., but not to organizational services.
Additionally, Project Manager role could not create / update / delete IAM policies.
Access to S3 are limited to be within the VPC.

AWS Blu Age Developer Role

AWS Developer (role name: BluAge_Developer_IAM_Role) is the user of the POC Landing Zone customer account. This role has limited access to multiple resources. For instance, Developer role cannot create new EC2 instances, but they can run the instances and use their assigned instances for development. Examples of partially allowed resources are: EC2, S3, CodeCommit, CodePipeline, CodeBuild, CodeDeploy, RDS, SSM, KMS, IAM and CloudWatch.
The permission given to Developer role is mainly on using the resources, but not on changing the resource configurations. All the data that developers can access are limited to be within the VPC.
